High-Purity Low-Temperature Sinterable Alumina Ceramic granulated powder Series - Jingci (Chengdu) Advanced Materials Technology Co., Ltd.

Product Introduction

This granulated powder features high-purity, high tap density, good sphericity, even particle distribution and favorable flowability. It supports easy dry pressing and demolding, producing dense green bodies with strong bonding strength. It exhibits excellent low-temperature firing characteristics. Post-sintering products feature tiny crystal nuclei, low porosity, high ceramic density and low shrinkage rate, delivering exceptional structural mechanical properties.

Product Features

This granulated powder covers full purity grades from 99.9% to 99.99%, with high tap density, excellent sphericity, uniform particle distribution and superior flowability. It enables easy dry pressing and demolding, delivering high green density, low sintering shrinkage. It boasts outstanding low-temperature firing performance, yielding sintered products with fine crystal nuclei and low porosity after firing.

Product Specifications

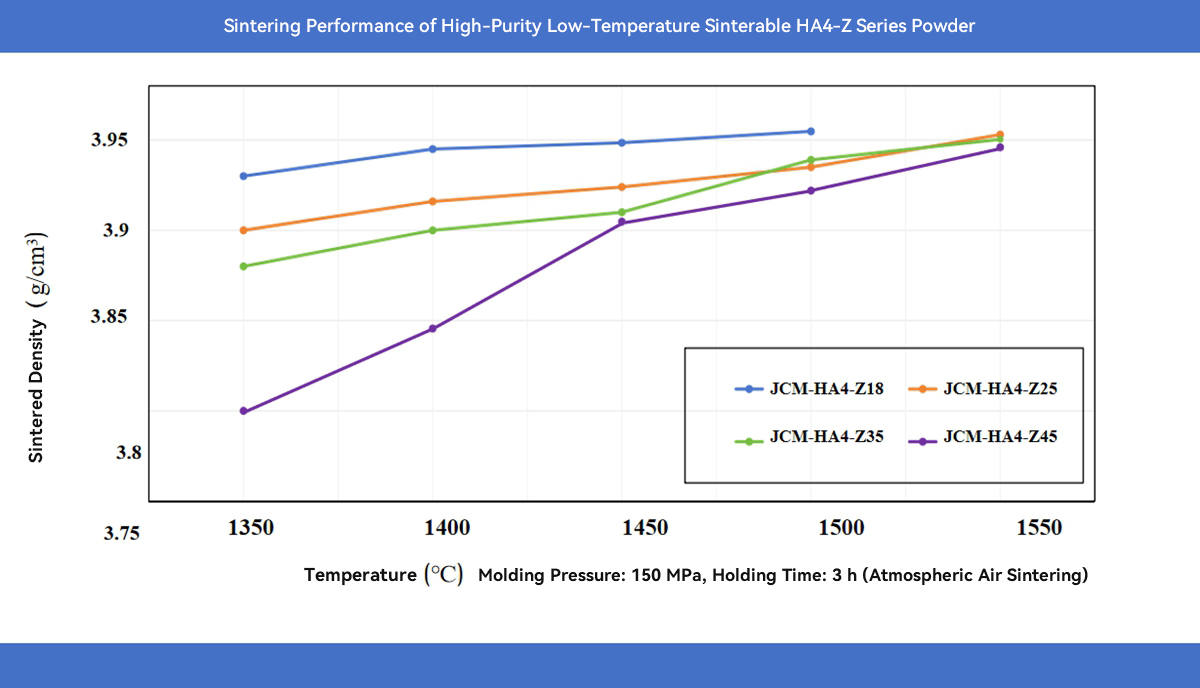

Physical Properties of High-Purity Low-Temperature Sinterable HA4-Z Series Alumina granulated powder

Product Model		Unit	JCM-HA4-Z18	JCM-HA4-Z25	JCM-HA4-Z35	JCM-HA4-Z45
Purity		%	≥99.99
Impurity Content	Na	ppm	<10
	Fe	ppm	<10
	Si	ppm	<20
	Ca	ppm	<10
	K	ppm	<10
	Mg	ppm	<10
Tap Density		g/㎝³	0.9±0.1
Molding Density(150MPa)		g/㎝³	2.2±0.02
Shrinkage Rate		%	18.5±0.5
Granule Sized50		μm	60±5
Average Particle Sized50		μm	0.175±0.01	0.250±0.01	0.350±0.01	0.450±0.01
Sintering Temperature		℃	1350±20	1400±20	1470±20	1550±20
Sintered Density		g/㎝³	3.93±0.01	3.93±0.01	3.94±0.01	3.95±0.01

Physical Properties of High-Purity Low-Temperature Sinterable HA3-Z Series Alumina granulated powder

Product Model		Unit	JCM-HA3-Z30	JCM-HA3-Z35	JCM-HA3-Z40	JCM-HA3-Z45
Purity		%	≥99.9
Impurity Content	Na	ppm	≤500
	Fe	ppm	≤100
	Si	ppm	≤100
Tap Density		g/㎝³	0.9±0.1
Molding Density(150MPa)		g/㎝³	2.2±0.02
Shrinkage Rate		%	18.5±0.5
Granule Sized50		μm	60±5
Average Particle Sized50		μm	0.300±0.01	0.350±0.01	0.400±0.01	0.450±0.01
Sintering Temperature		℃	1450±20	1470±20	1500±20	1550±20
Sintered Density		g/㎝³	3.94±0.01	3.94±0.01	3.94±0.01	3.94±0.01
